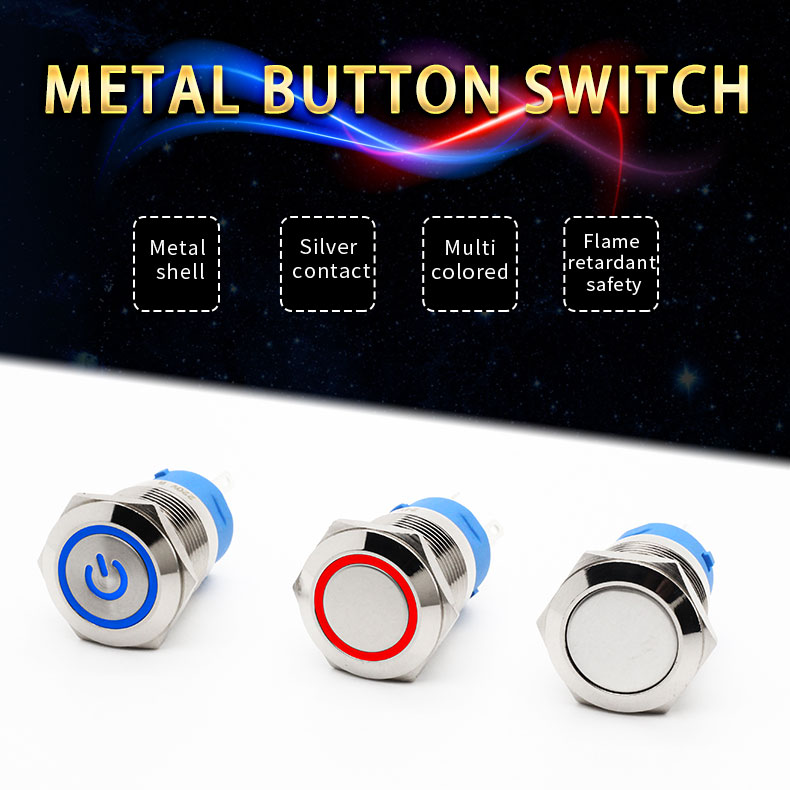

Metal LED Illuminated Switches Push Button

Product Detail

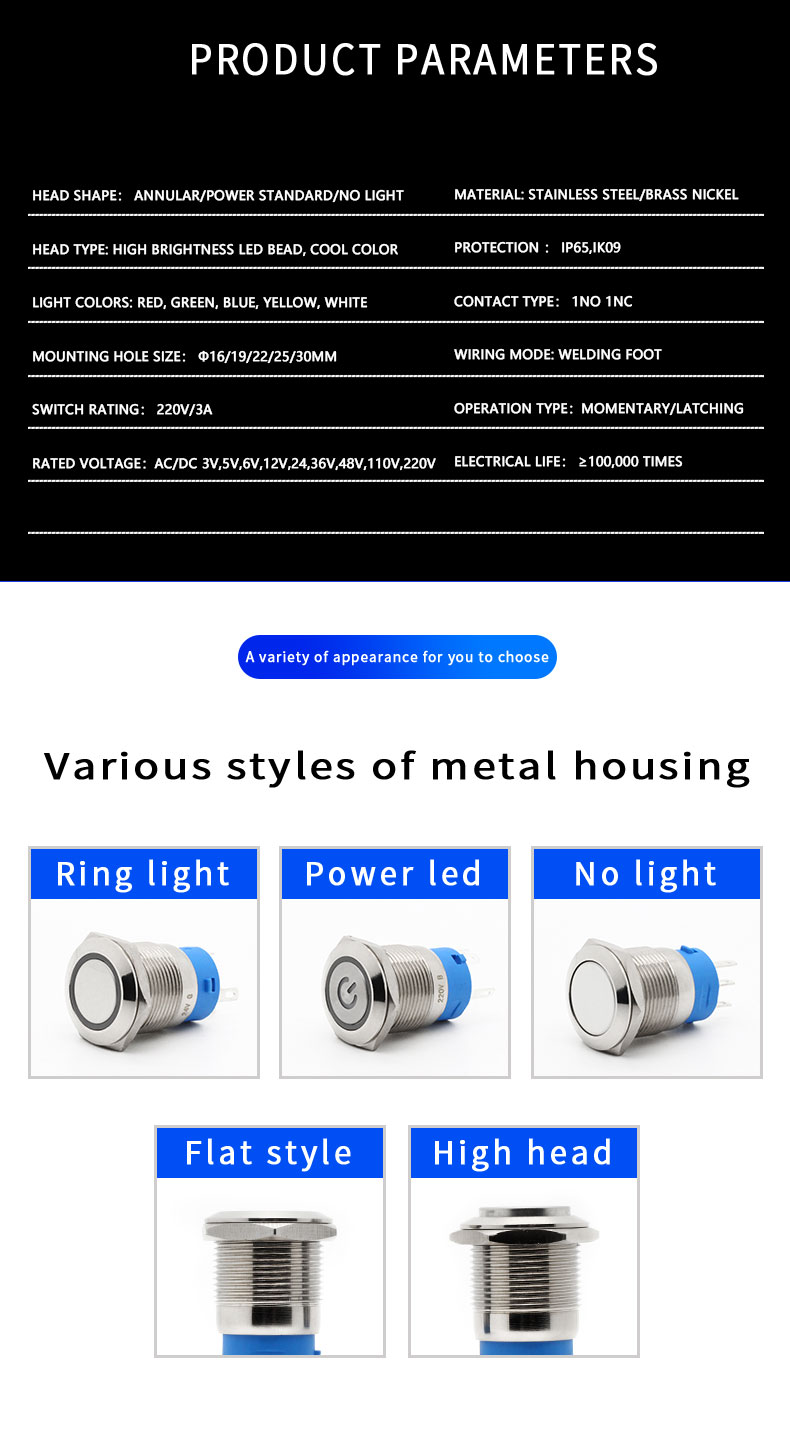

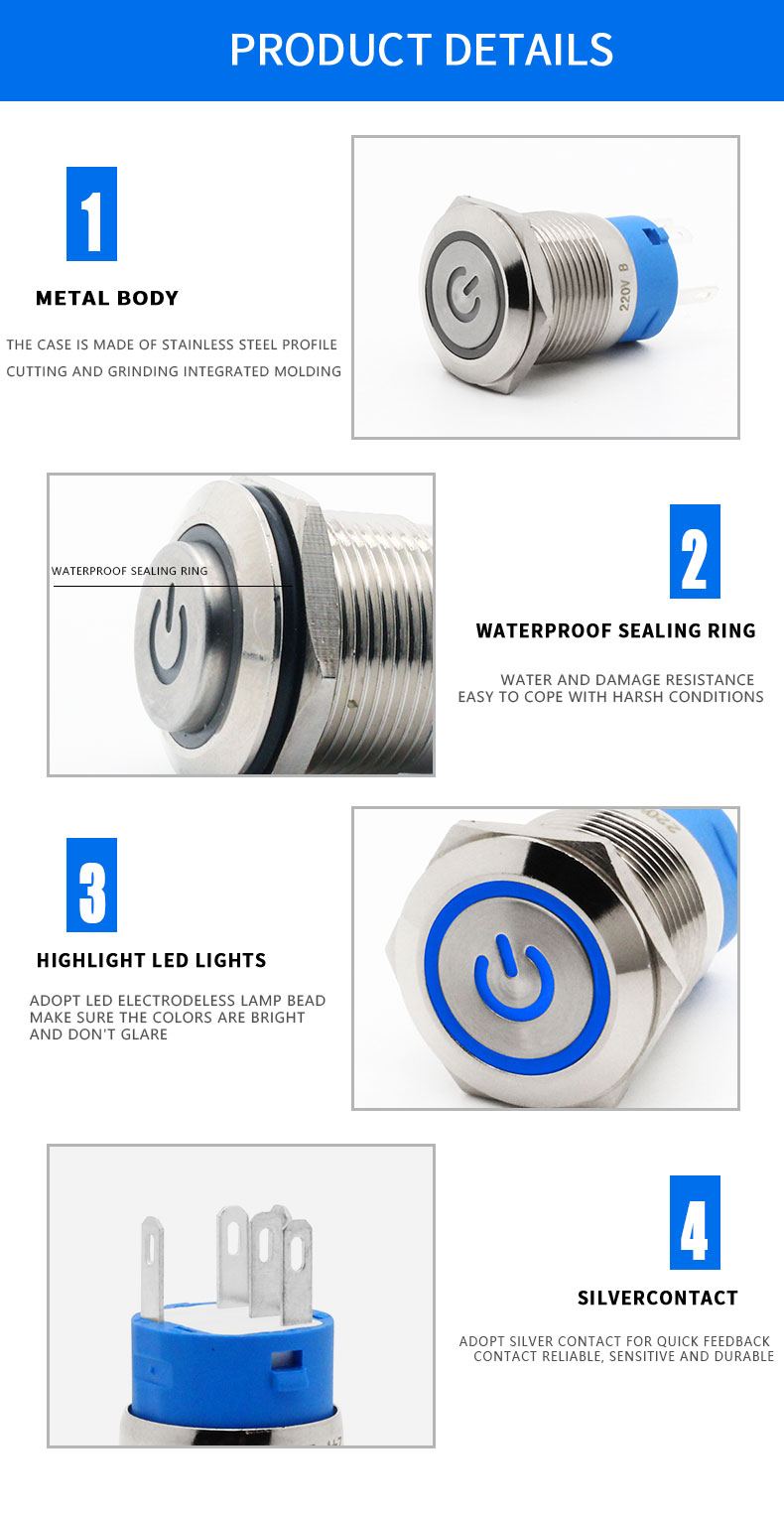

Metal LED Illuminated Switches Push Button Product Description

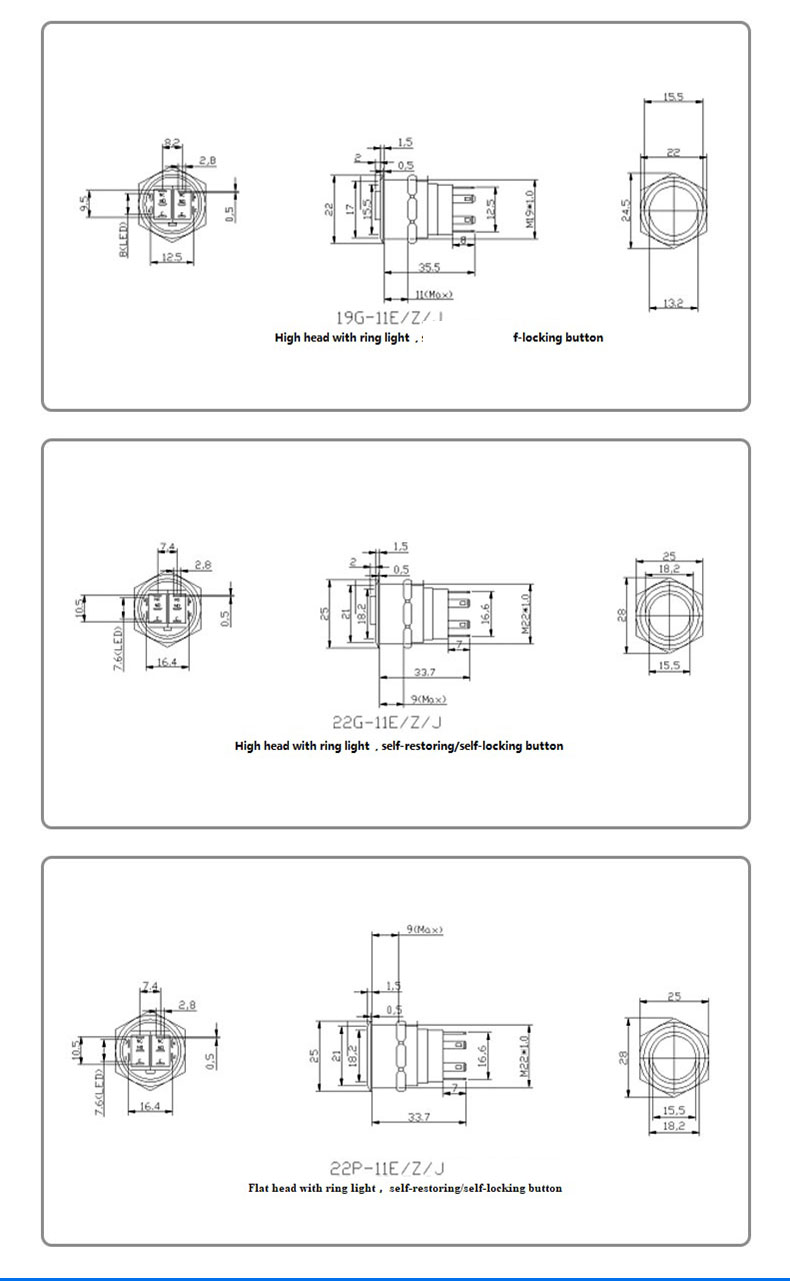

Thread Diameter:	12,16,19,22 mm etc.

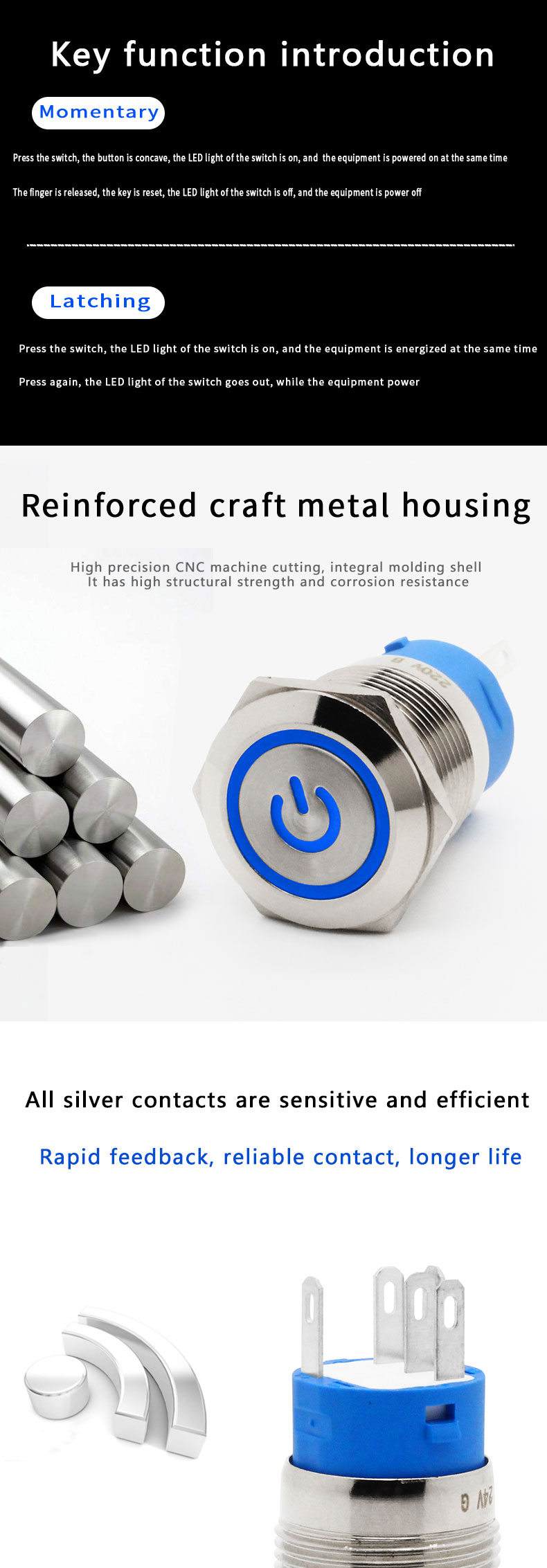

Operation type:	Momentary (also have latching type)
Housing material:	Stainless steel (or other, contact me)

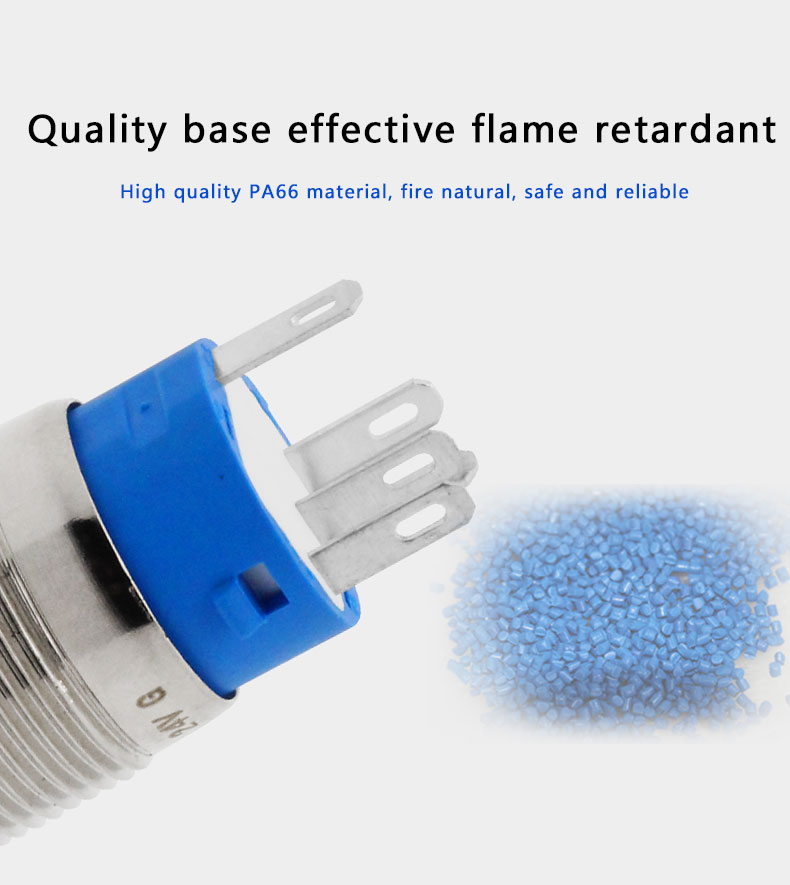

Terminal type:	soldering pin,(or solder with wires,socket)

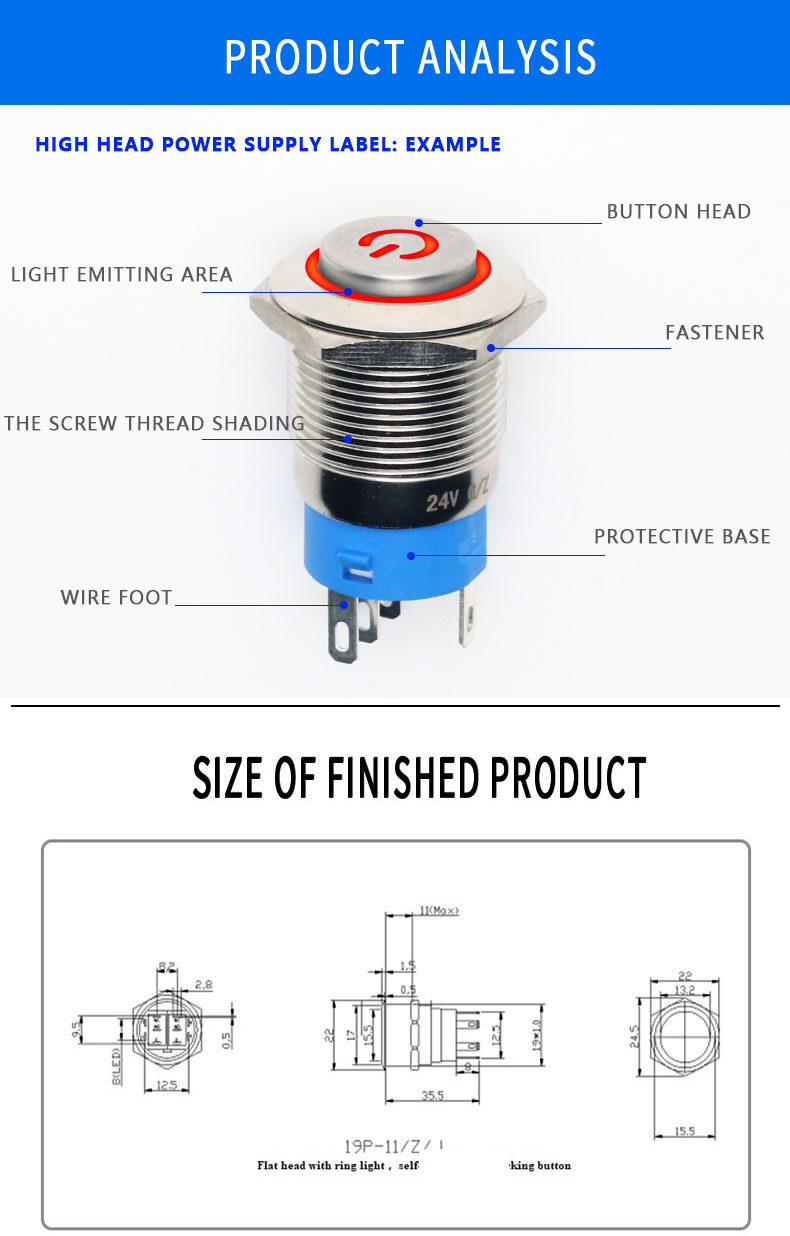

Head type:	High head,Flat head, with LED or not

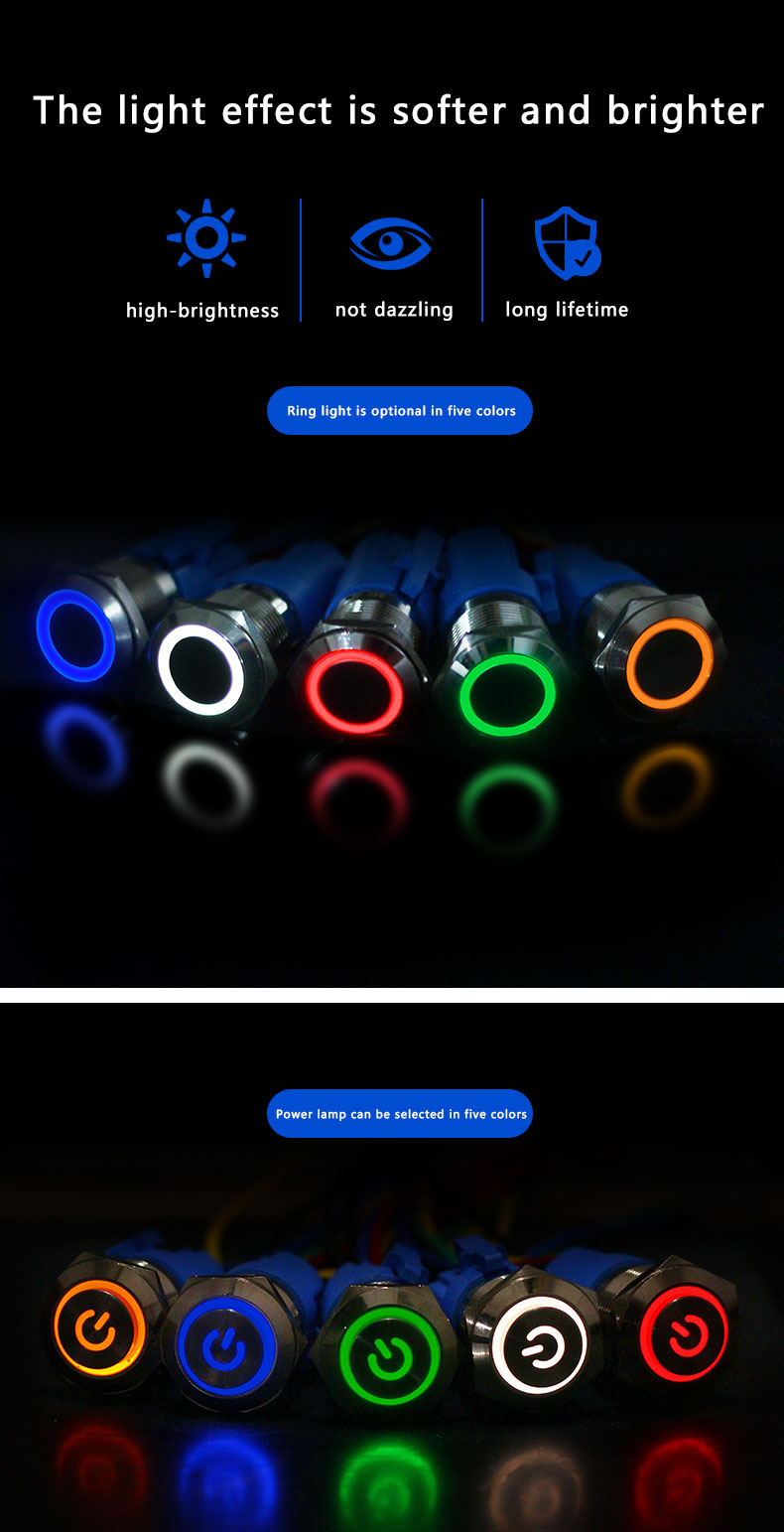

LED color:	red,green,white,blue,yellow,orange,bi-color,tri-color RGB
LED voltage:	3V/6V/12V/24V/48V/110V/220V (made to order)
Contact configuration:	1NO1NC (spdt)
Contact Material:	Silver plated gold
Switch rating:	5A/250V
Mechanical life:	more than 500,000 Cycles
Electrical Life:	more than 200,000 Cycles
Operating Temp:	-20ºC~+55ºC

ON/OFF ILLUMINATED PUSH BUTTON SWITCH:

2/4 pin metal momentary auto reset push-button switch, push it, remain on, release the finger, get off. Mounting Hole: 12mm/16mm/19mm/22mm/25mm/30mm is optional

EASY TO CONNECT & DURABLE:

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

LIGHTED Slef reset PUSHBUTTON SWITCH:

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

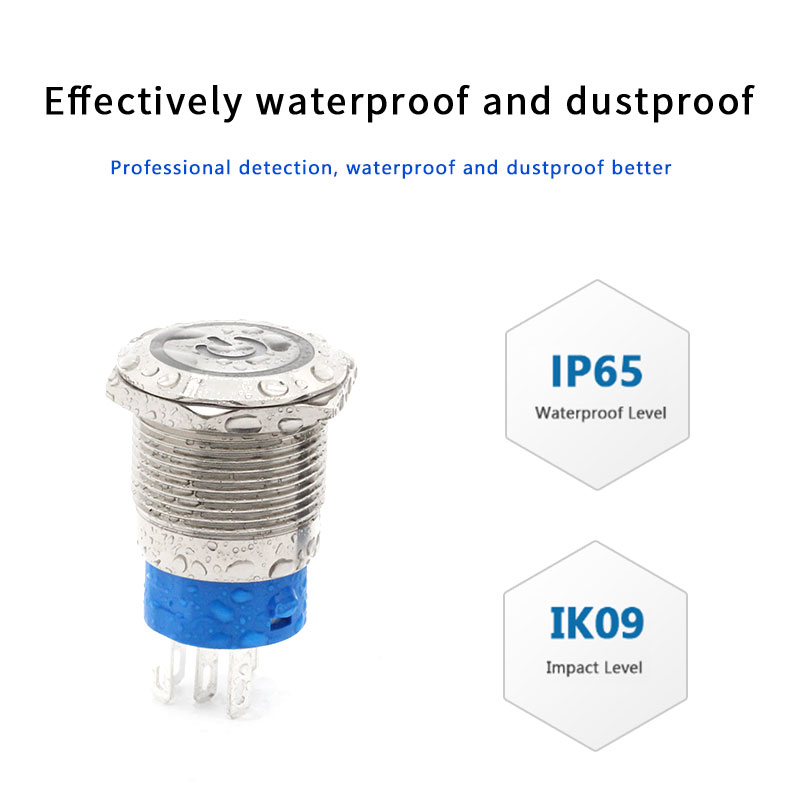

WATERPROOF MARINE SWITCH:

This momentary push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.

WIDE APPLICATION:

This 12V/24V push button switch is suitable for motorized vehicles of motor starting, power starting devices, and can also be an access control button.
